SAFE MANHOLE ACCESS SYSTEMS
LIFTING CRANES
ATS Lifting Cranes eliminate the manual handling risks associated with removing heavy manhole covers.
Designed specifically for Wunder-Covers and standard utility covers, our lifting cranes use mechanical advantage and ergonomic design to allow one person to safely lift and move covers weighing up to 150kg without back strain or finger injuries.
Manufactured in New Zealand from marine-grade 316 stainless steel.
LIFTING CRANE FEATURES & SPECIFICATIONS

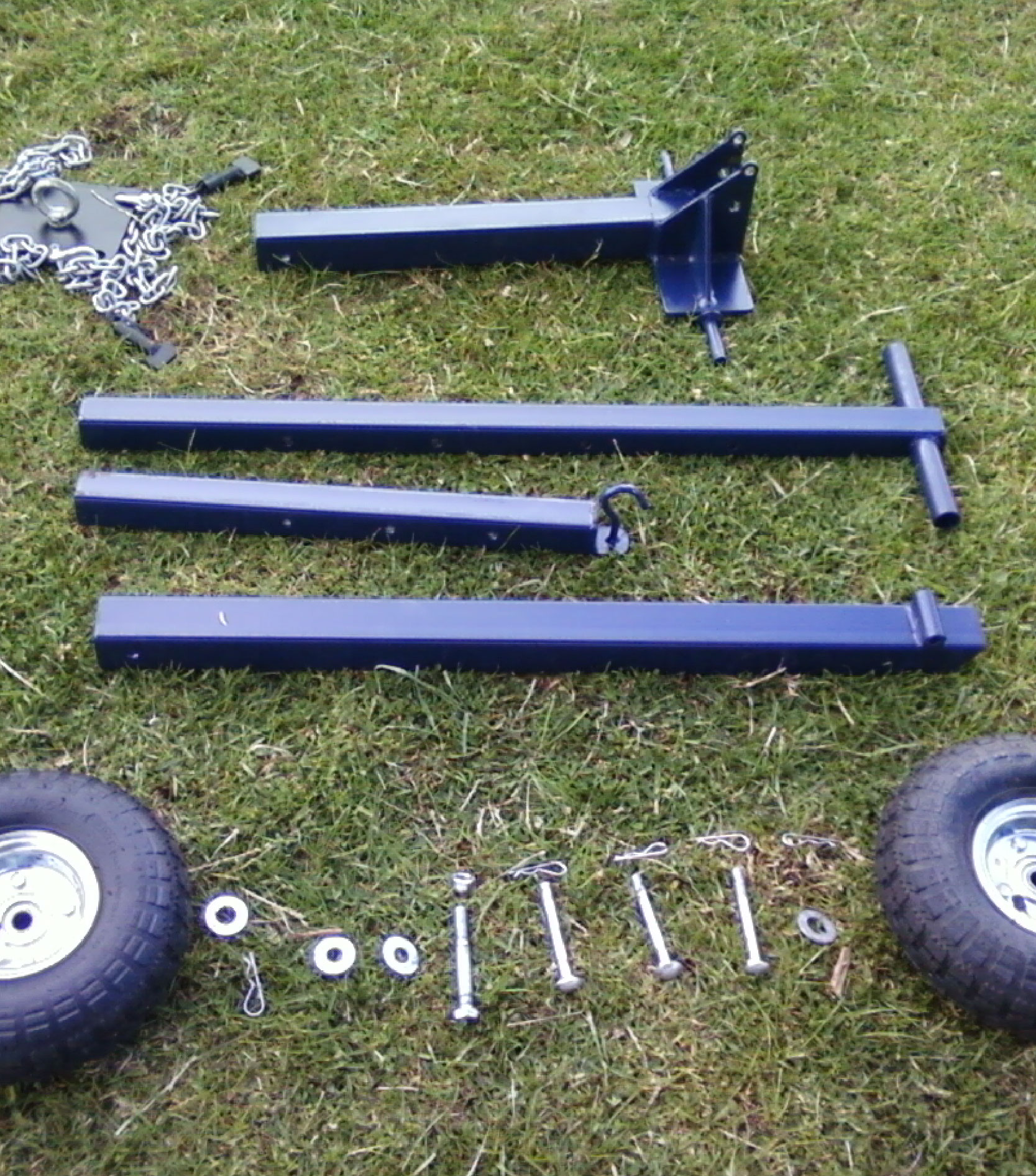

Collapsible Design
Compact folding mechanism for easy storage and transport between sites. Fits in standard service vehicles
Multi-Functional
Compatible with Wunder-Covers, multi-lid systems, and standard utility covers. Lifts various cover types and configurations.
Adjustable System
Height and reach adjustable to suit different operators and cover configurations. Ergonomic operation reduces physical strain.
Ergonomic Operation
Mechanical advantage system eliminates heavy lifting. One person can safely remove covers weighing up to 150kg.
316 Stainless Steel Construction
Marine-grade stainless steel for maximum durability and corrosion resistance. Built to withstand site conditions and heavy use.
Safety Focused
Secure hook system prevents accidental release. Stable wheelbase design prevents tipping during operation.
INSTALLATION GUIDE
Step 1: Unfold & Position Unfold the lifting crane and insert the key into the proper slot. Position the crane over the cover.

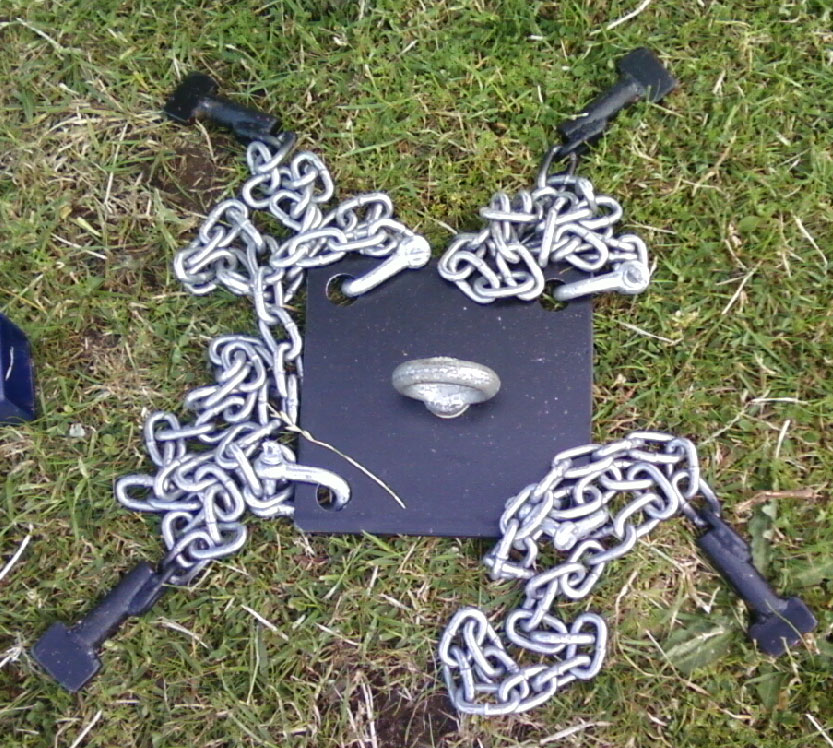

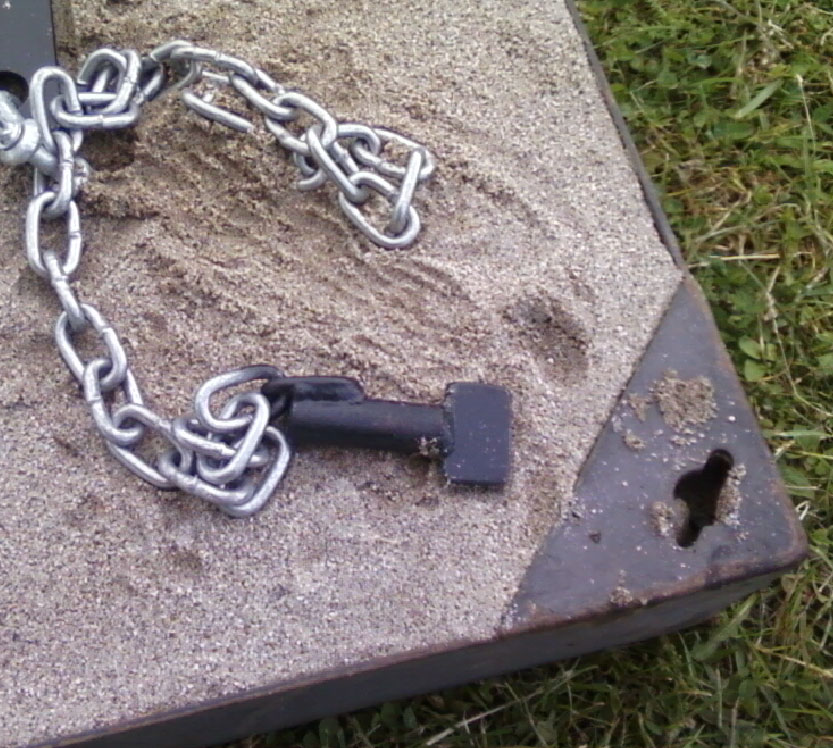

Step 2: Insert Hooks Insert hooks into the lifting points or corners of your Wunder-Cover or utility cover.

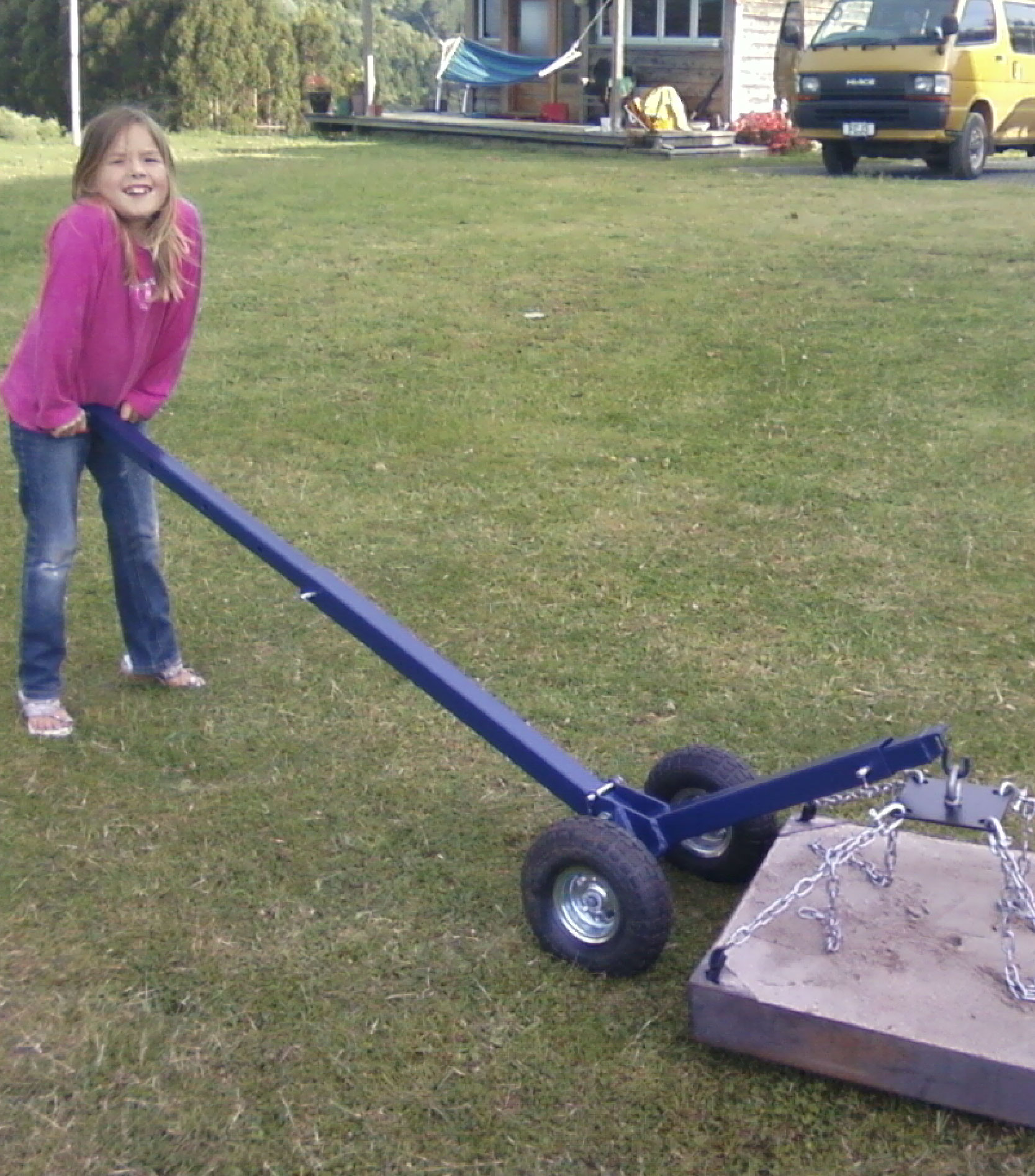

Step 3: Lift & Move Simply lift using the handle and wheel the cover out of position. Reverse the process to replace.
TECHNICAL SPECIFICATIONS
CAPACITY & DIMENSIONS
Lifting Capacity:
- Maximum lift: 300kg
- Maximum load (wheeling): 150kg
Dimensions:
- Handle length: 700mm (adjustable)
- Base width: 440mm
- Collapsed height: Compact for vehicle storage
Construction:
- Material: 316 stainless steel
- Finish: Brushed stainless
- Wheels: Heavy-duty castors
FAQ
Frequently Asked
What covers are compatible with the ATS Lifting Crane?
The lifting crane works with all Wunder-Covers (single, double, and multi-lid), standard utility covers with lifting points, and most manhole covers with corner access. If your covers have lifting points or accessible corners, the crane will work.
How much weight can the lifting crane handle?
Maximum lifting capacity is 300kg. Once lifted, covers up to 150kg can be safely wheeled out of position. This covers the vast majority of manhole and utility cover applications.
Is training required to use the lifting crane?
Basic instruction is all that’s needed. The operation is intuitive – unfold, hook, lift. We provide demonstration videos and can arrange on-site training for larger orders.
How does the lifting crane improve safety?
It eliminates manual lifting of heavy covers, preventing back strain and crushed fingers. The mechanical advantage means workers aren’t struggling with awkward, heavy lids.
Is the lifting crane durable enough for daily site use?
Yes. 316 stainless steel construction withstands harsh site conditions, weather exposure, and heavy use. The collapsible design has no weak points or failure-prone mechanisms.
Can the lifting crane work with cast iron covers?
Yes, provided the cover has lifting points or corner access for the hooks. The crane is compatible with most standard manhole covers, not just Wunder-Covers.
How portable is the lifting crane?
Very portable. The collapsible design fits in standard service vehicles. Lightweight enough for one person to transport and set up.
Does the lifting crane require maintenance?
Minimal maintenance required. Occasional cleaning and checking that moving parts operate smoothly. The stainless steel construction resists corrosion.
ABOUT ATS LIFTING CRANES
Manual handling injuries from lifting heavy manhole covers are a persistent workplace safety issue. Workers risk back strain, crushed fingers, and dropped lids when removing covers manually or with improvised tools.
THE SOLUTION
ATS developed the Lifting Crane to eliminate these risks. The system uses mechanical advantage and an ergonomic design that allows one person to safely lift and move covers weighing up to 150kg. No more awkward bending, heavy lifting, or finger injuries.
ENGINEERING
Constructed from marine-grade 316 stainless steel for maximum durability and corrosion resistance. The collapsible design provides portability without compromising structural integrity. Adjustable components accommodate different operators and cover configurations.
NEW ZEALAND MADE
Designed and manufactured in New Zealand specifically for local conditions and work practices.
